geared tripod head ROGETI RG-1 Geared Tripod Head MarkIVThe RG 1 Geared Head mounts onto standard round top screw tripods Quick Setup: Connects to Arca Swiss standard clamps via the included dovetail base KEY FEATURES Height of only 100mm, or 4 inches, and a weight of only700 grams, or 1. 54 lbs Clever layout and clear controls 210 (105 symmetrical) oversized pitch angle with no mechanical interference between movements Worm geared drive, self locking at any angle Clutch for quick tilting adjustment

The RG-1 Geared Head mounts onto standard round-top screw tripods

Quick Setup: Connects to Arca-Swiss standard clamps via the included dovetail base

KEY FEATURES

• Height of only 100mm, or 4 inches, and a weight of only700 grams, or 1.54 lbs

• Clever layout and clear controls

• 210° (±105° symmetrical) oversized pitch angle with no mechanical interference between movements

• Worm-geared drive, self-locking at any angle

• Clutch for quick tilting adjustment

• Additional fine-tuning knob for convenience in the extreme tilting position

• High-precision three-axis Leveling Vials(Bubble Levels), made in the UK

• 60mm-long clamp on the main bearing platform

• Detachable customized caps to meet different photography needs and avoid interference between XYZ dimensions

• Compact and safe configuration for transportation

• Ready for video shooting when S20&Panning Handl attached
• Precision machining and manufacturing

TECHNICAL SPECIFICATIONS

WARRANTY POLICY

FAQ / Technical Support for Professional User

Is there gear backlash or wobbling over time?

RG-1 features industry-leading gear engagement precision, delivering a 'Zero-Backlash' experience. By pairing Bronze gears with Stainless Steel worms, ROGETI created a high-hardness, low-friction drive system that ensures micro-adjustment accuracy and uncompromising long-term stability, even under heavy professional loads.

Is it too slow for field use? Is there a quick-release gear?

RG-1 features a Quick-Release Clutch on the tilt axis, allowing for rapid large-scale positioning. You can switch from fast framing in seconds, making it ideal for the "Golden Hour."

Why does the ROGETI RG-1 eliminate the traditional top panning base?

Unlike traditional heads that use a top panner to compensate for limited tilt range, the RG-1 features a native three-axis architecture with a full range of motion. This eliminates "axis interference," ensuring your horizon stays perfectly level even as you adjust the pitch.

Read the full technical blog

User Manual Download

For advanced inquiries on the RG-1 Gear Head or other products, please contact our technical team via email.

ROGETI RG-1:

WHERE LOGIC FINDS ITS FORM

The ROGETI RG-1 was born from an ambitious wish list: extensive pitching range, effortless operation, compact form, lightweight construction,strong load capacity, exceptional impact resistance, precise leveling capability, modular versatility, and seamless panoramic photography. Through an elegant and intelligent design approach, this ambitious vision has been realized, transforming aspirational features into practical realities and resulting in the creation of an innovative and powerful geared head.

Steamlined Workflow & Well-Placed Knob Layout

The RG-1 features an efficient and clear knob layout, eliminating the confusion typically associated with geared tripod heads that have multiple adjustment knobs. The symmetric structure of the RG-1 helps users immediately understand the function of each knob, resulting in a smoother shooting process.

Light Weight & Compact Design

Weighing only 1.54 lbs (700g) and measuring just 4 inches (100mm) tall, the RG-1 is exceptionally compact and lightweight. Despite its small footprint, its robust construction and 60mm-long bearing platform provide secure support for heavy camera setups and large lenses.

Fully Symmetrical Pitch & Roll

The RG1 features fully symmetrical pitch and roll mechanisms. This balanced structure provides a more intuitive handling experience and ensures consistent responsiveness from both axes.

Roll Ajustment Beneath the Pitch Axis

The ±20° roll adjustment on both sides is primarily used for leveling. Positioning the roll mechanism beneath the pitch structure allows the camera to maintain a perfectly level horizon throughout the entire tilt range.
Notably, the roll adjustment does not shift as the pitch angle changes. This means that even when the camera is pointed straight upward or downward for vertical shooting, fine roll adjustments remain unaffected.

Large Pitch Range with No Axis Interference

The RG-1’s patented design offers a groundbreaking ±105° pitch range (210° total), surpassing the capabilities of traditional geared heads. After initial leveling adjustments using the fine-tuning geared knob, the platform remains consistently level across the entire pitch range, removing the need for repeated leveling adjustments common with traditional tripod heads. This design simplifies substantial pitch changes without forcing photographers to reverse camera orientation.

Secure for Travel

When fully tilted, the RG-1’s main bearing platform seamlessly nests into the main body, significantly reducing overall packing size. This design also improves impact resistance during transport, making the RG-1 both safer and more travel-friendly.

Durable Base Platform

Constructed from a solid block of metal, the RG-1’s base platform and pitching barrel offer outstanding stability and durability. Its extended 60mm clamp length ensures exceptional stability, making it ideal for heavy telephoto lenses and precise time-lapse photography.

Detachable Modular CAP System

The RG-1 features a detachable modular CAP system, merging the best features of both 4-D and 3-D tripod heads. While 4-D heads enable 360° panoramic captures, they often introduce adjustment interference. The RG-1 maintains independent 3-D adjustments, allowing precise XYZ control without interference. Users can select different CAP modules tailored to specific shooting scenarios.

WHAT'S IN THE BOX

• RG-1 Geared Tripod Head Mark4+
• CAP-X2Y Instant Orthogonal Exchange Cap Mark5
• QRS-R14 Square Plate
• Red & Black Soft Ruber Knob Covers
• SPN Quick-Release Base

OPTIONS

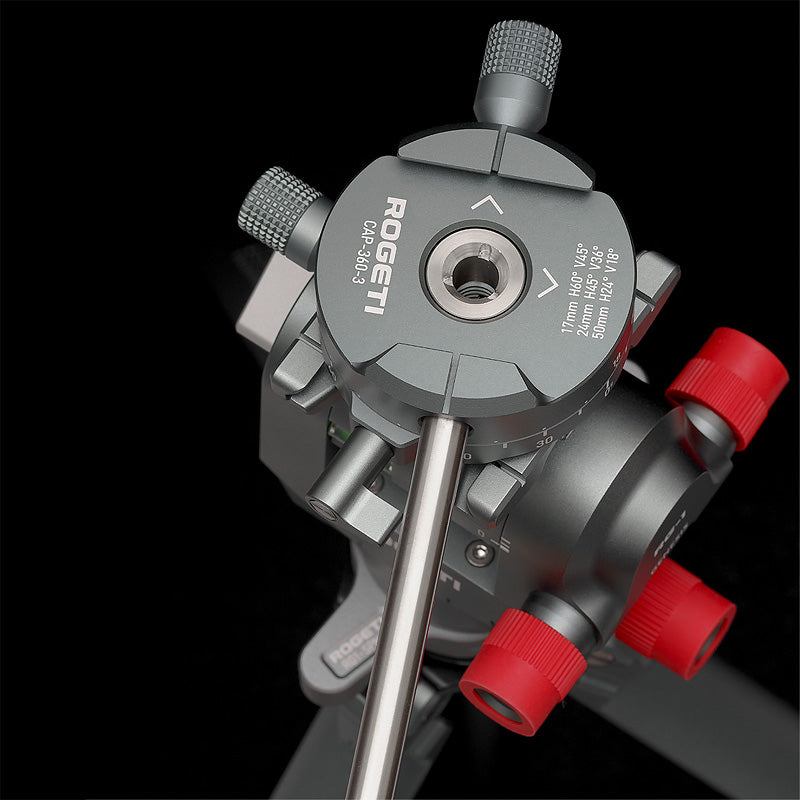

• CAP-360 Panning Head & S20 Handle
• CAP-GZA Geared Panning Head(prcecision geared rotation around the Z-Axis)
• Micro-positioning Linear Stage
• ROGETI Accessories Kit (CAP-360 Panning Head & S20 Handle, CAP-GZA Geared Panning Head, Micro-positioning Linear Stage)
